SKU: PSRPAT-093

Nissan Patrol GQ-GU Chassis Bracing Wagon Long Arm Internal-External (Engine mount to tow bar)

$295.00

or 4 payments of $73.75 with More Info



In Stock

Features

  • 4mm 350 MPA Steel
  • Weld On


  • Description

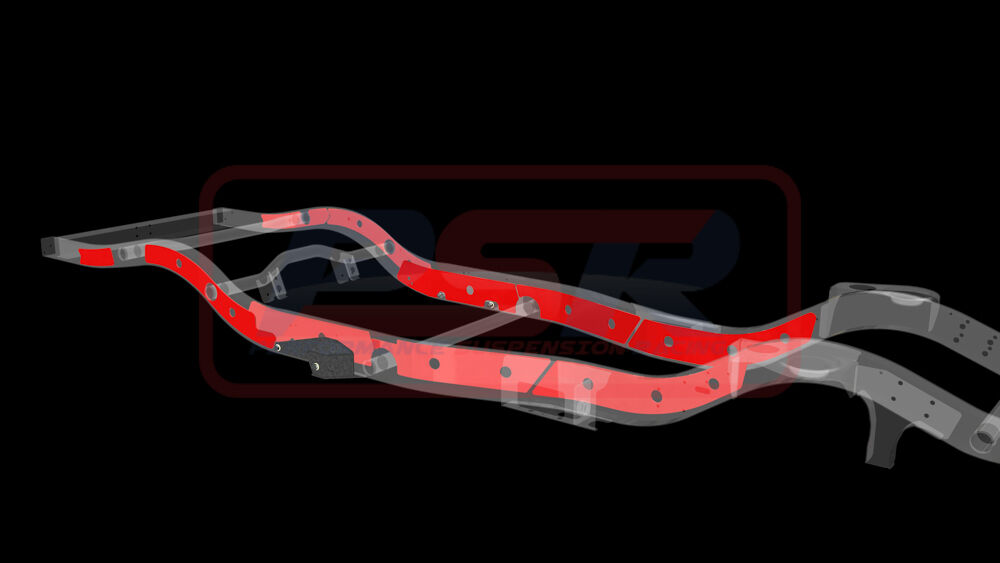

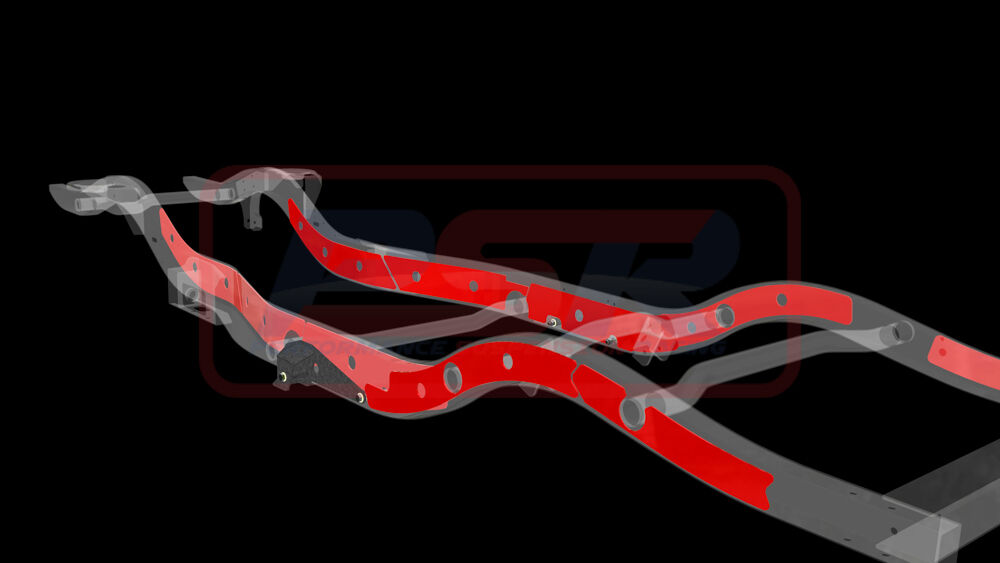

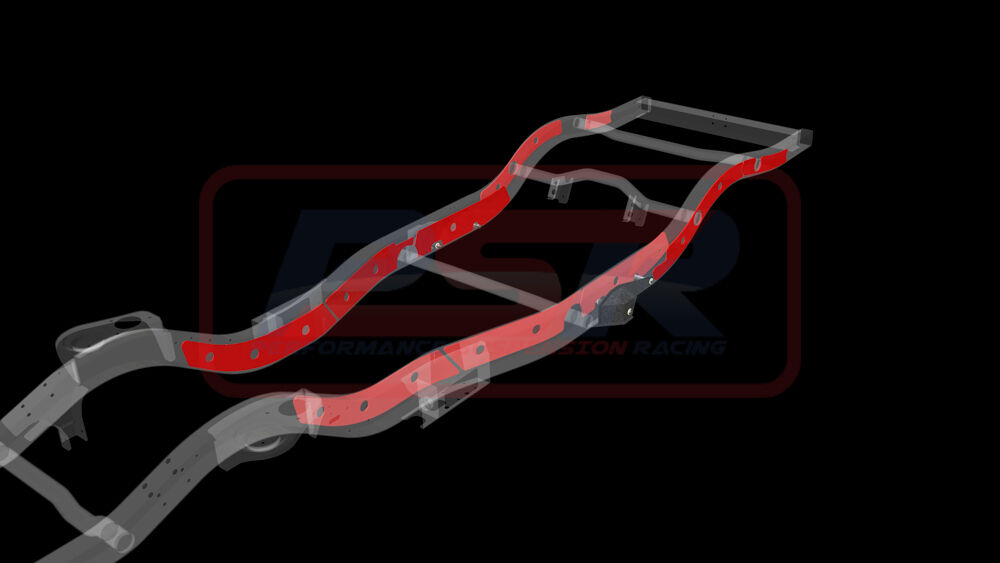

    PSR's Nissan Patrol GQ-GU Chassis Bracing Wagon Long Arm Internal-External is a total chassis brace package to suit a wagon chassis. Designed to brace internally from behind our Nissan Patrol GQ-GU chassis side weld on HD engine mounts PSRPAT-086, back to the common fatigue point at the joint on the inside of the chassis just in front of the rear upper control arm mount. This is not only a weak area but a common collection point for contaminants which accelerates corrosion of the chassis from the inside out, another need to strengthen the area. Externally it overlaps this fatigue point and braces back to the rear most part of the chassis and is designed exclusively to work around our own rear long arm system. The kit consists of 10 pieces precision cut from 4mm 350MPA plate.

    Warranty

    Please contact us for product warranty information.

    Specifications

    SKU PSRPAT-093
    Brand Performance Suspension Racing
    Shipping Weight 8.0000kg
    Shipping Width 0.350m
    Shipping Height 0.070m
    Shipping Length 1.050m
    Unit Of Measure Kit
