SKU: PSRPAT-077

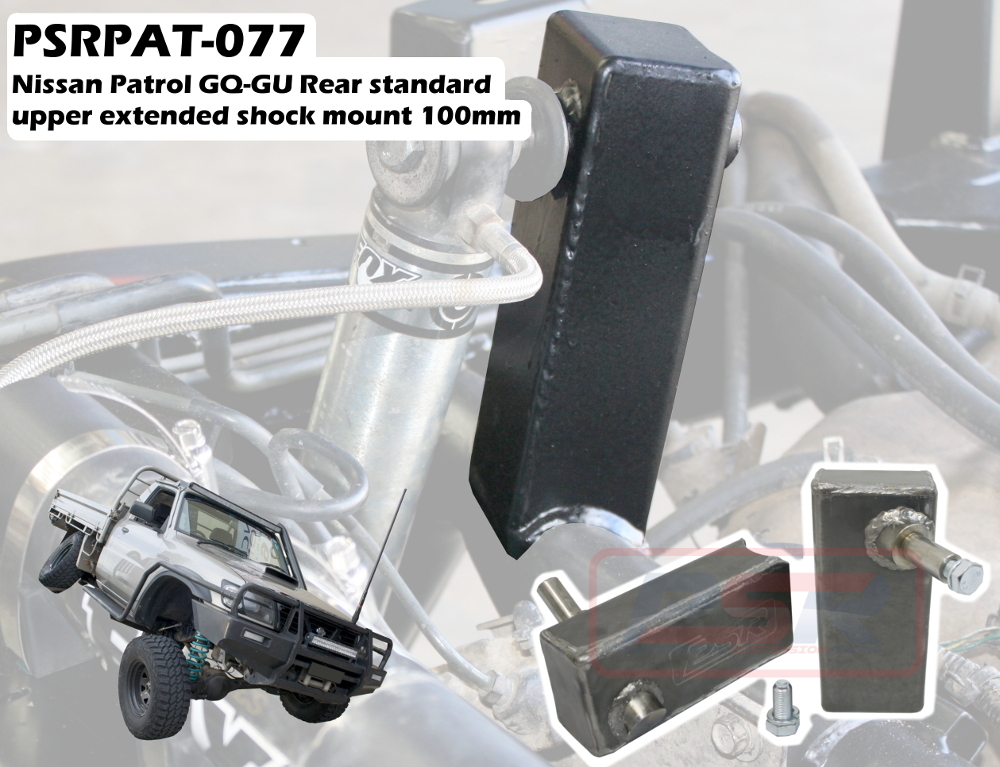

Nissan Patrol GQ-GU Rear standard Upper extended shock mount 100mm

$245.00

or 4 payments of $61.25 with More Info



In Stock

Features

  • Weld on
  • Raises Shock 100mm

You Might Want To Add



Description

PSR's Nissan Patrol GQ-GU Rear Extended Shock Mounts are a weld on mount that replaces the factory location on the diff. This is an area which can greatly improve the rear suspension through modified mounting heights to suit different shock lengths, achieving desired travel of your rear suspension. Depending on requirements both the diff and the chassis mounts can be modified.

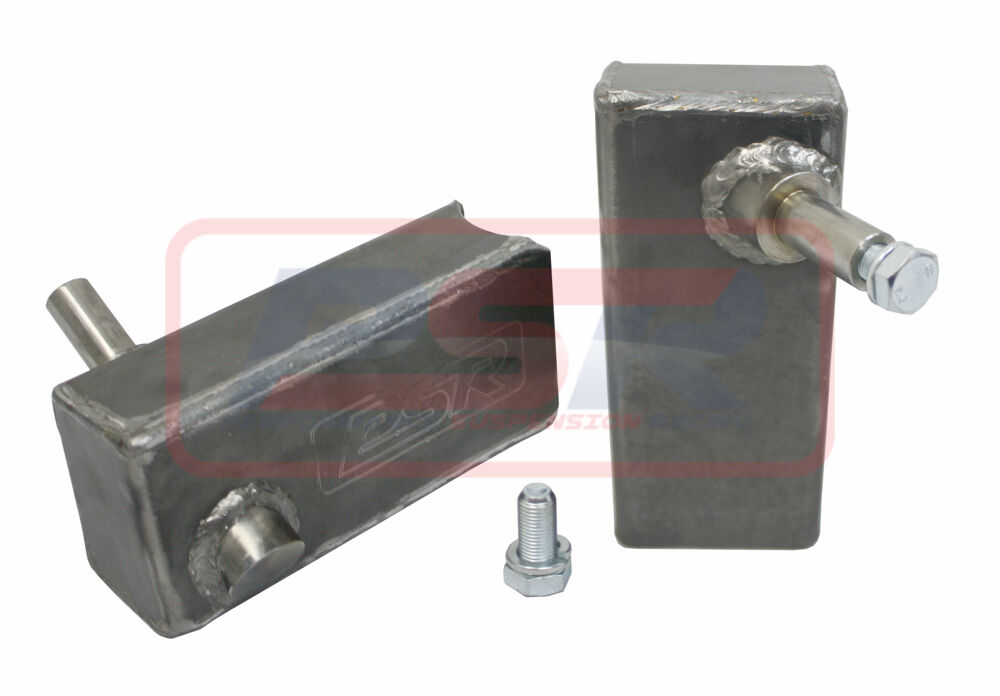

A common catch point to the underside of your vehicle is the lower shock mount, to remove this issue a high clearance shock mount is offered. This mount is a weld on HD mount and lifts the shock point up 100mm. Mount comes pre welded and features a CNC machined pin that has an internal thread rather than the factory exposed style pin, this means if the head of the bolt was ever to get damaged the rest of the bolt can be removed, whereas if the stud was to break the entire unit would more than likely need to be repaired / refabricated.

Made from a combination of 4mm and 5mm 350MPA steel and supplied with detailed fitting instructions. Kit also comes with a bracket to relocate the hard brake line on the diff. Pin length and diameter is factory size. (Upper chassis side see also PSRPAT-076. Diff side see PSRPAT-067 or PSRPAT-075).

Warranty

Please contact us for product warranty information.

Specifications

SKU PSRPAT-077
Brand Performance Suspension Racing
Shipping Weight 8.0000kg
Shipping Width 0.180m
Shipping Height 0.120m
Shipping Length 0.300m
Unit Of Measure Kit
