SKU: PSRPAT-064

Nissan Patrol GQ-GU Front Raised Shock Tower System 75mm (Weld in)(pin shock mounting)

$395.00

or 4 payments of $98.75 with More Info




Features

  • Raised shock mounting point by 75mm
  • 5mm 350mpa
  • Integrated coil tower and chassis brace
  • Resi mounting to rear of new tower
  • Cutting required

You Might Want To Add



Description

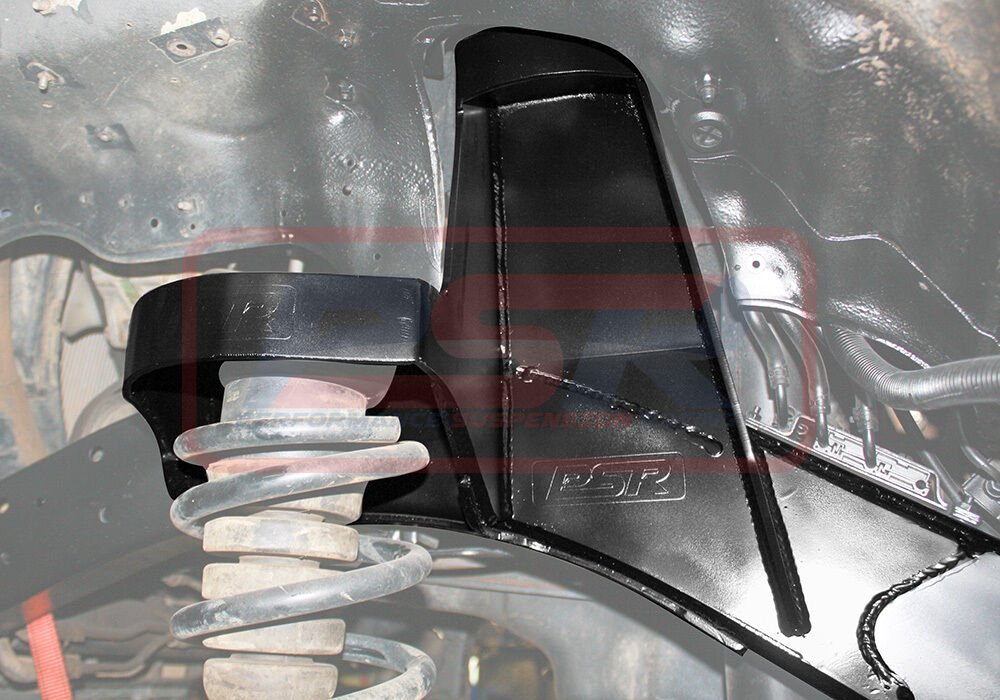

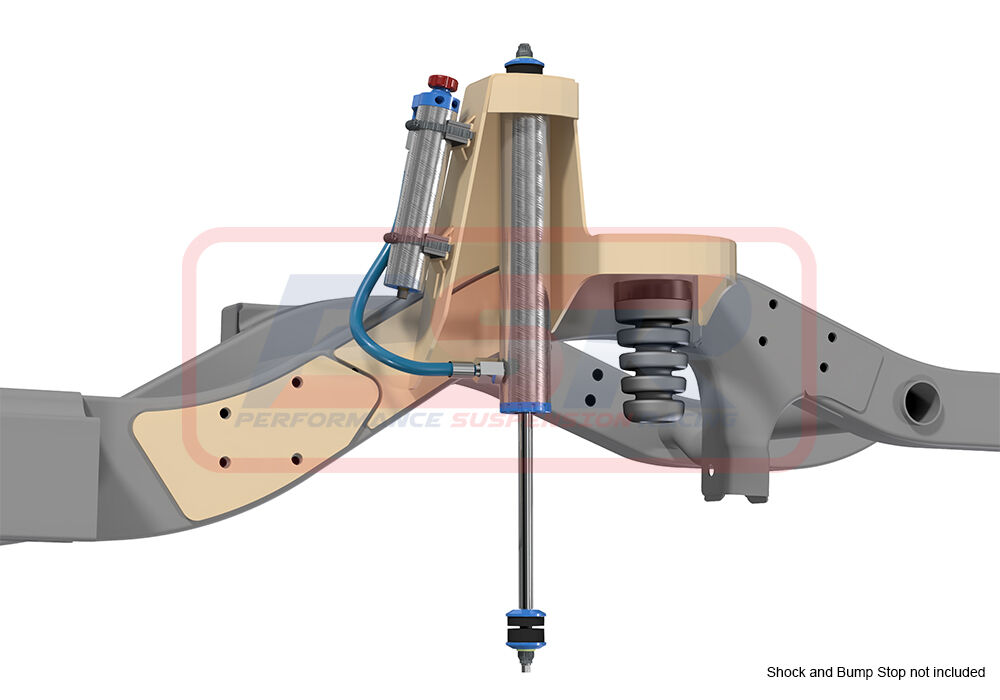

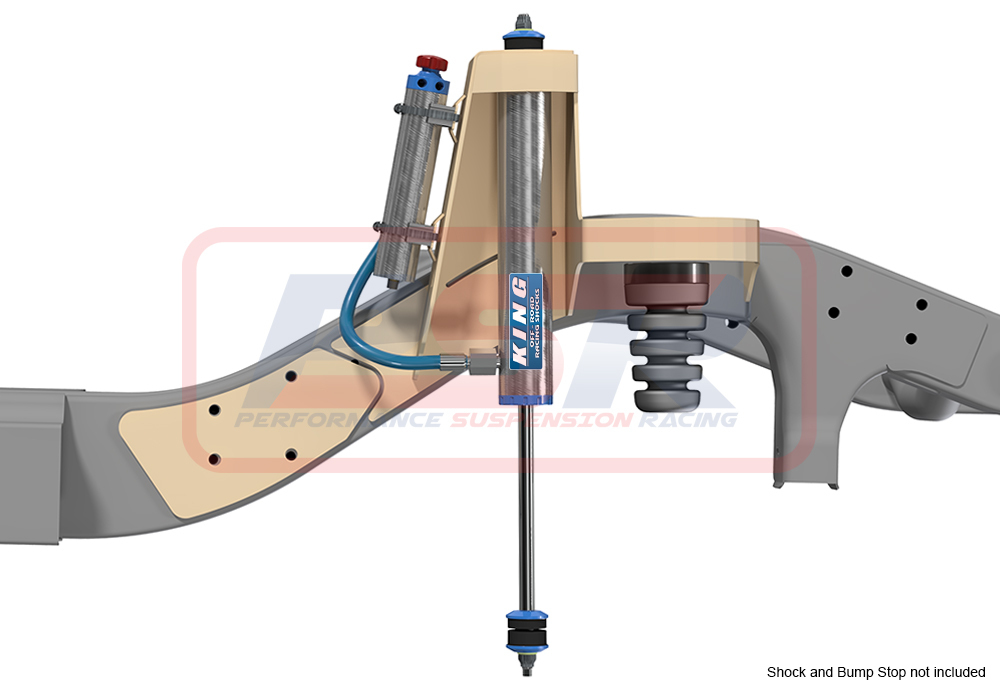

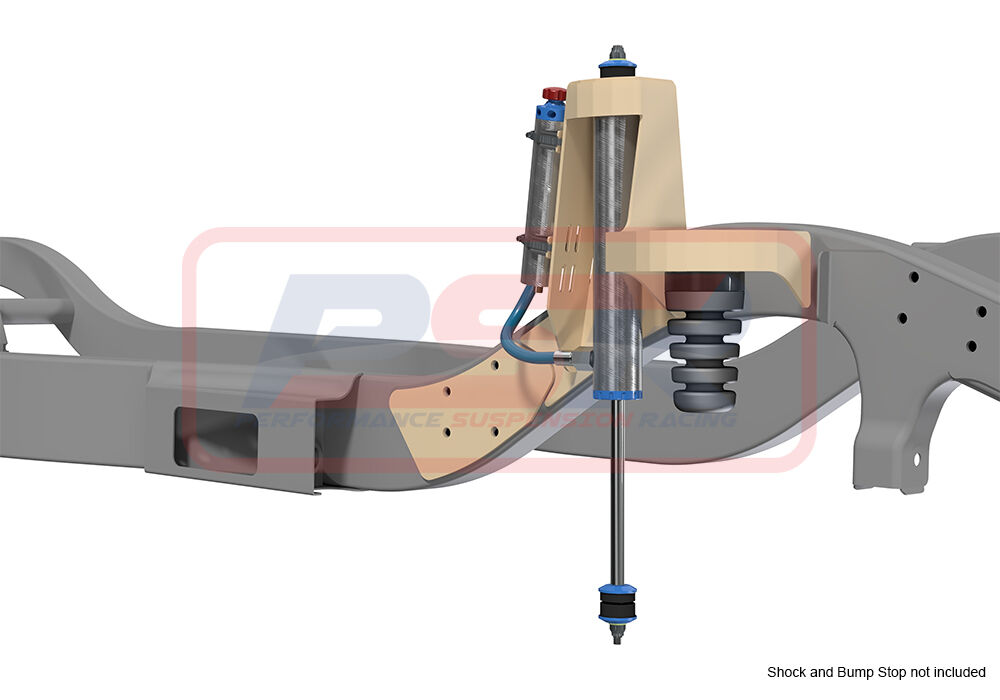

PSR's Nissan Patrol GQ-GU 75mm Front Raised Shock Tower System are now available! Designed to replace the OE shock mounting location and weld on the chassis it lifts the pin location up 75mm to provide the ability to run longer shocks, provide more up travel, reduce bump extension or run your current setup at a lower height!

Designed super strong it integrates a coil tower brace and full chassis bracing under the tower that continues rear under the sway bar mount. Supplied raw from 5mm 350 mpa plate, it has to be fabricated in situ.

Also supplied are resi mounts that allow a flexible location for your resi. Cutting to the inner guard is required. Depending on your engine model and accessories some items may be required to move in the engine bay.

Warranty

Please contact us for product warranty information.

Specifications

SKU PSRPAT-064
Brand PSR
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.500m
Unit Of Measure Pair

Reviews

Be The First To Review This Product!

Help other DRIVEN OFFROAD users shop smarter by writing reviews for products you have purchased.

Write a product review
