SKU: PSRPAT-049-KIT

Nissan Patrol GQ-GU Hybrid Long Arm 6"

$2,295.00



In Stock

Features

  • Suited to 6" lift
  • 32mm flame cut plate BIZ80 / StrenX 700
  • Longest radius arm on the market
  • Genuine bushes
  • Sway bar and ABS location supplied on every arm
  • Complete replacement X-member and drop box assembly
  • Ability to run our heavy duty bash guard coupled to the replacement X-member
  • Huge increase in strength and improved clearance with our X-member
  • CNC machined rear locating washers and shanked bolt for ultimate strength and location of the radius arm
  • Welded using certified practices
  • Wheel push for clearance
  • Painted black for ultimate stealth

  • Vehicle Crossmember


    Description

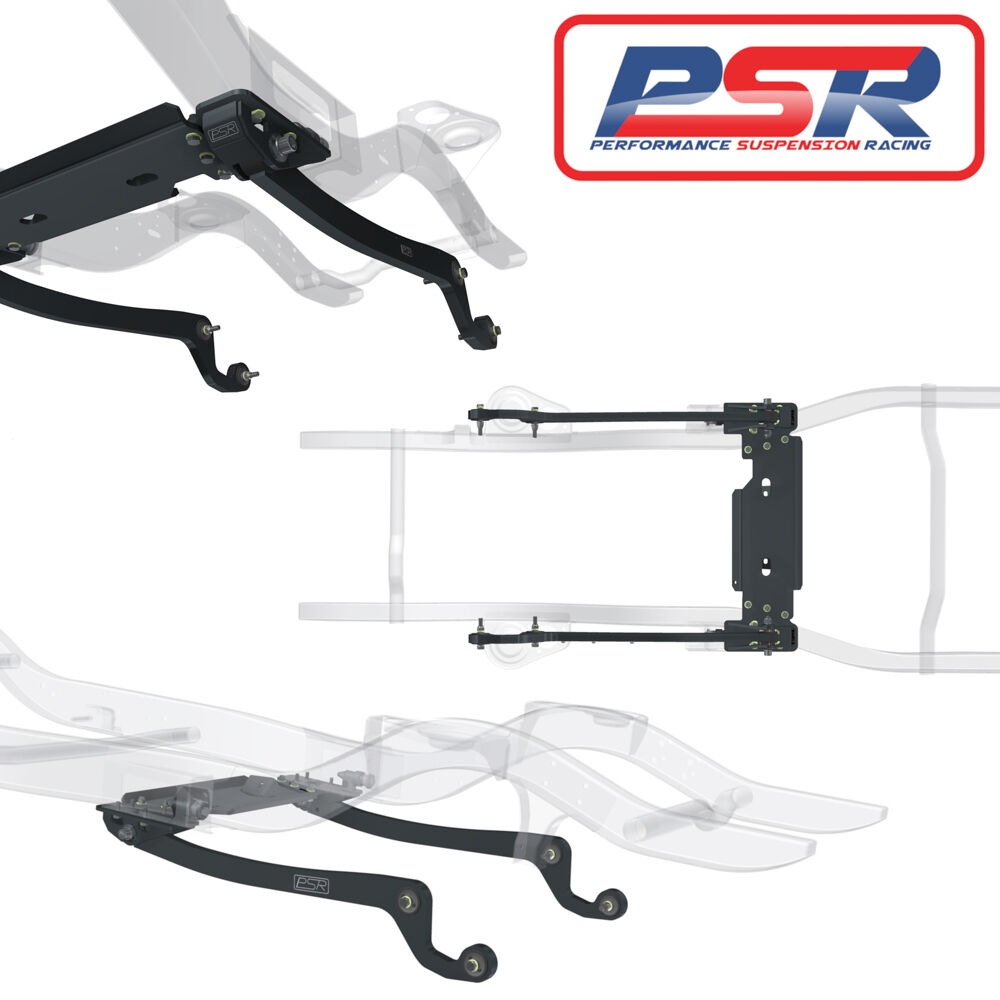

    PSR's Nissan Patrol GQ-GU Hybrid Long arm system is a heavy duty improved design radius arm system. It is designed to offer the best combination of stability and off road performance! Starting with the radius arms, they are manufactured from 32mm BIZ80 / StrenX 700 and are the longest on the market, featuring full wrap bush housings at the front and a Toyota Landcruiser rear bush allowing reduced restriction of articulation and extended bush life, genuine bushes are installed throughout.

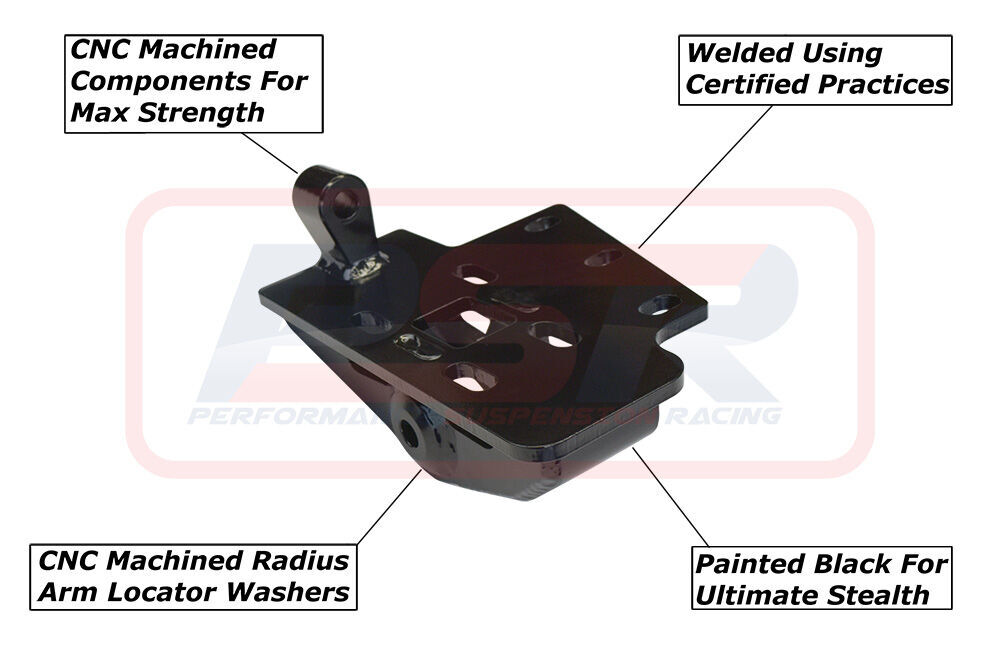

    Unlike other brands, our caster correction arms are lift specific & come pre-drilled for both GQ & GU swaybars & ABS lines. Radius arms come pre-drilled for both GQ and GU sway bars and ABS lines every time! The supplied drop boxes are a unique design featuring a combination of precision CNC components for ultimate strength! One feature is the CNC machined radius arm locator washers, these eliminate the issue of hole sizing variations from profile cutting, meaning secure location is assured, also a shanked bolt is used meaning ultimate strength!

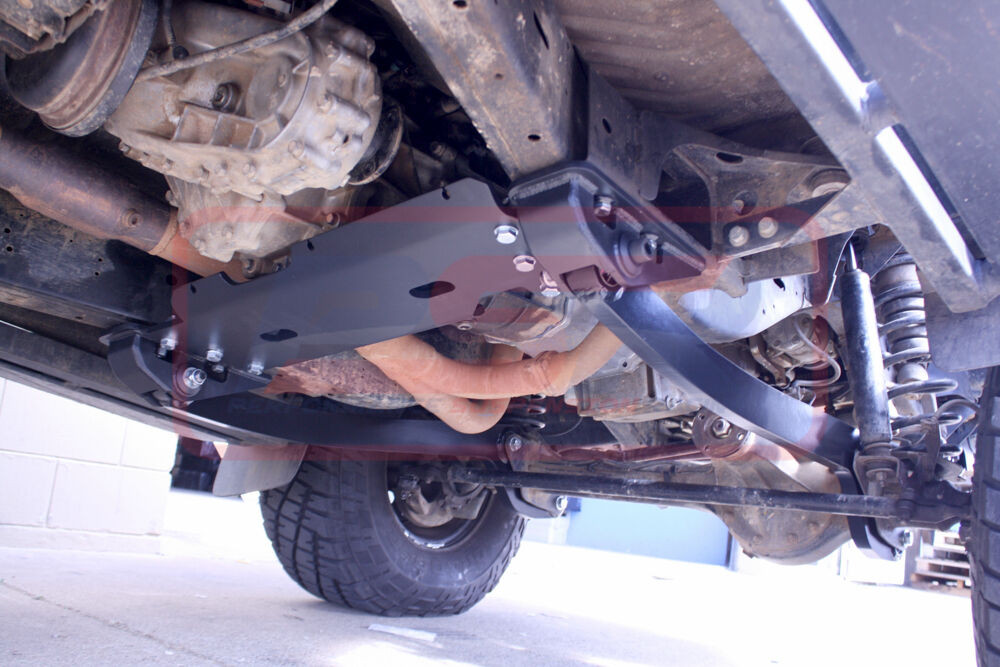

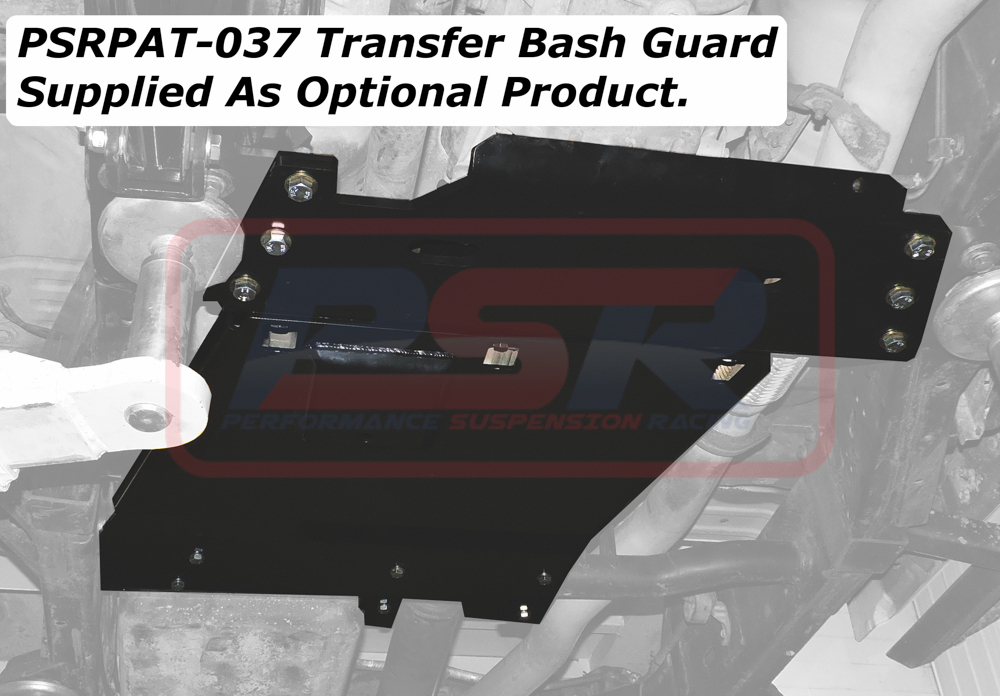

    A super heavy duty replacement gearbox X-member is supplied which is fabricated from 12mm plate and offers higher clearance and reduced catch points compared to the factory X-member. This then allows the use of our Heavy duty bash guard that protects the transfer case and other items under the vehicle (P/NO, PSRPAT-037). All components are manufactured using strict welding certification practices and are painted black for a stealth look.

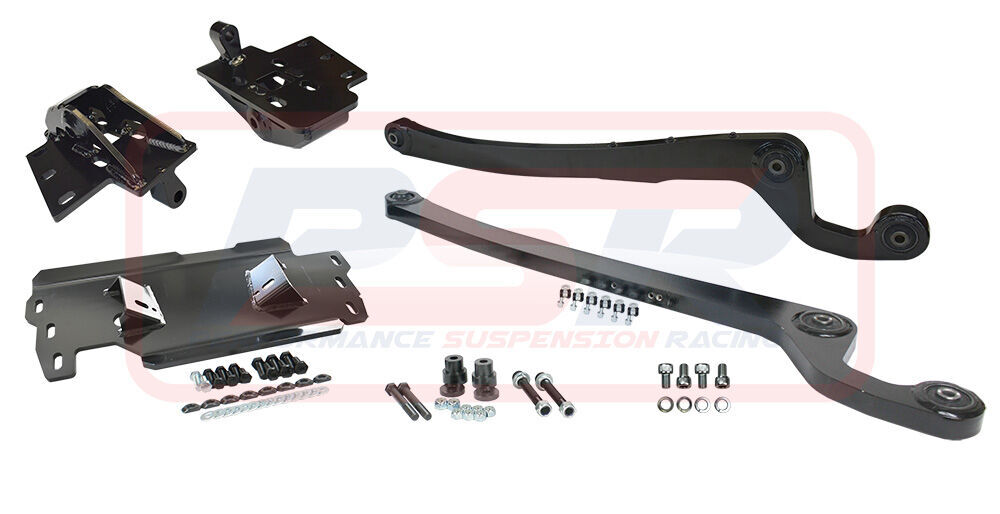

    Kit comes with all items for fitment to the vehicle including radius arms, drop boxes, gearbox x-member and all fasteners required. Please specify engine and gearbox combinations below when ordering. SYSTEM COMES WITH A NO BEND GUARANTEE. This means no matter what you have put our control arms or radius arms through we will replace them NO QUESTIONS ASKED!

    Warranty

    Please contact us for product warranty information.

    Specifications

    SKU PSRPAT-049-KIT
    Brand PSR
    Unit Of Measure Kit
